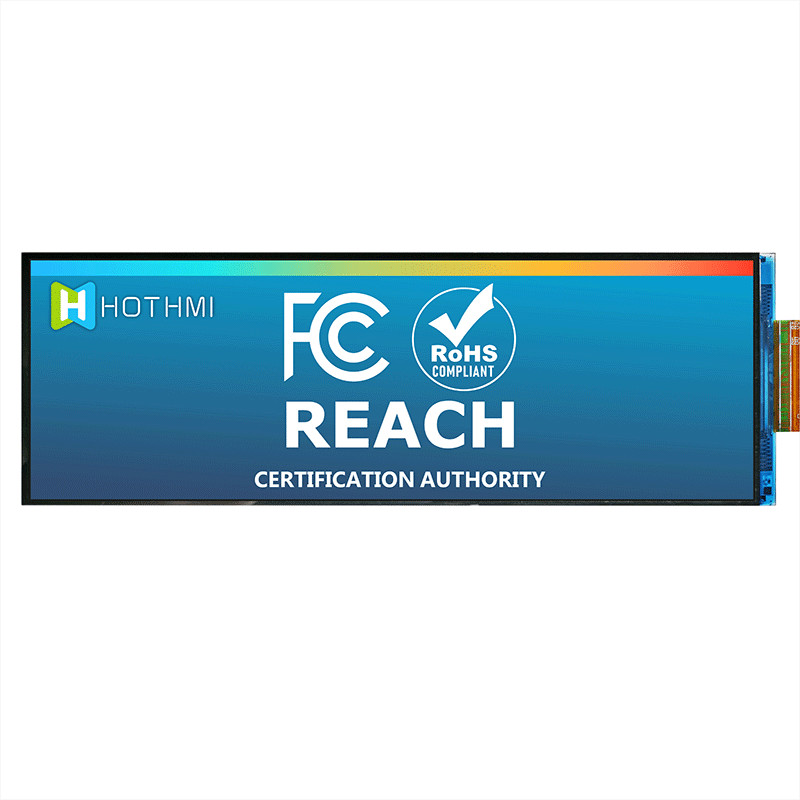

7.8 Inch 400x1280 Bar Type TFT , ST7703 High Brightness LCD Display

Name: 78 Inch 400x1280 Bar Type TFT ST7703 High Brightness LCD Display
Brand: HOTHMI
Price: 1 USD

Quality 7.8 Inch 400x1280 Bar Type TFT , ST7703 High Brightness LCD Display wholesale

Brand Name : HOTHMI

Model Number : TFT-H078A1ZAIST7N40

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : Strip TFT

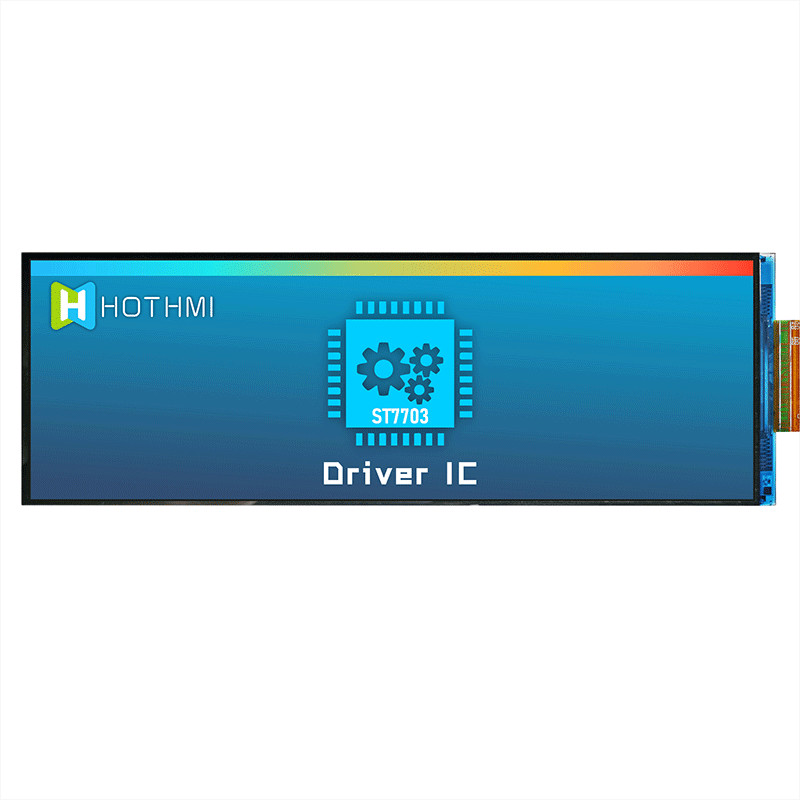

Driver IC Model : ST7703

Dimensions (mm) : 201.18x65.2

Display Content : 400x1280 dots

Viewport Window Size : 7.8 inch

Product Application : Home Appliances, Advertising Machines

Contact Now

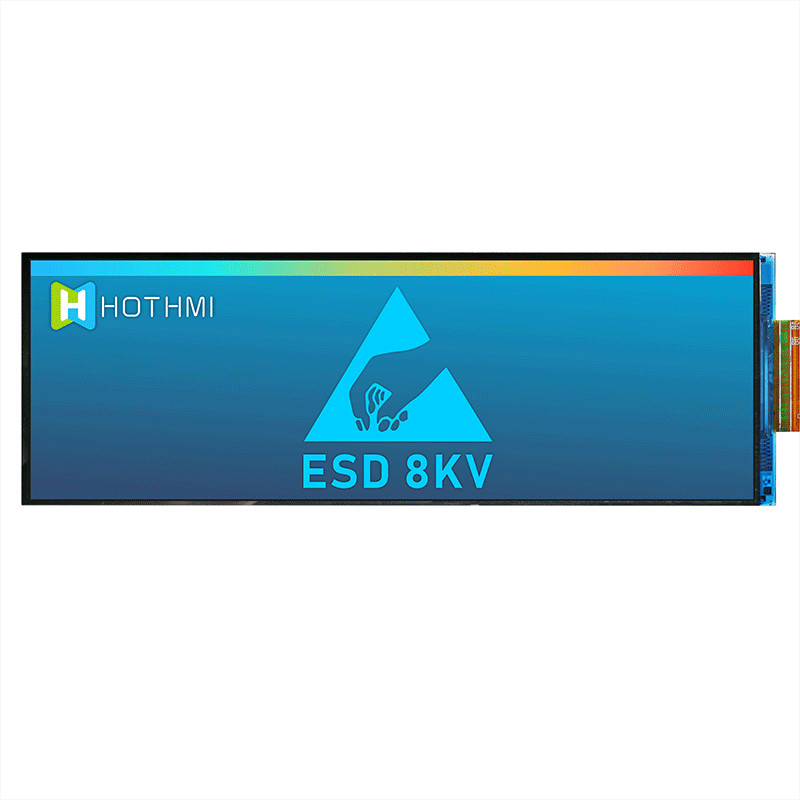

7.8 Inch High Brightness ST7703 TFT LCD Display/400x1280 Dots/TFT-H078A1ZAIST7N40

Product parameters

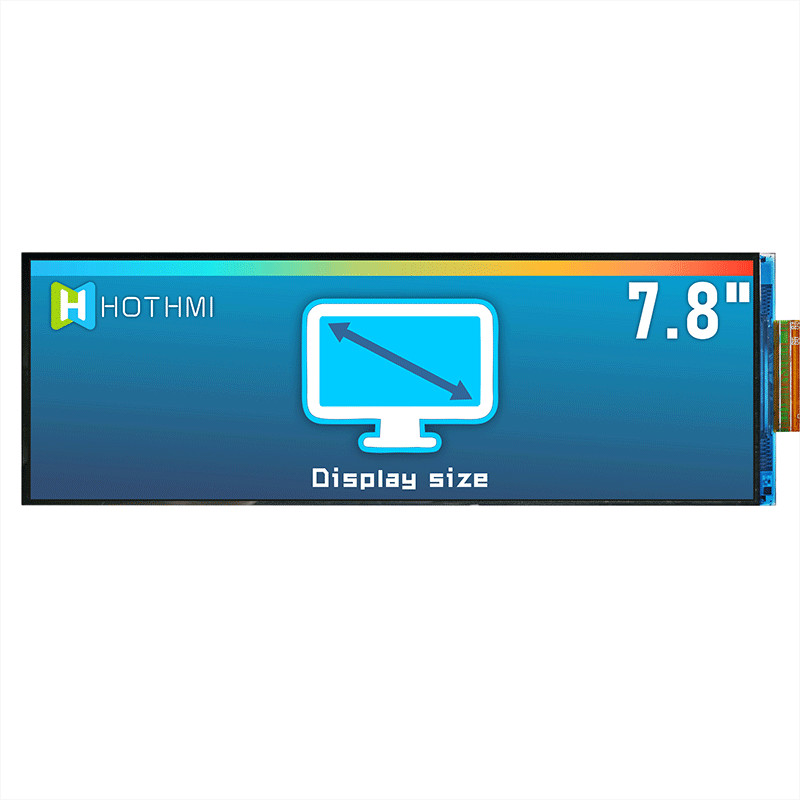

Display Size - 7.8 inch
Effective Size (mm) - 190.08x59.40
Perspective - Full Perspective

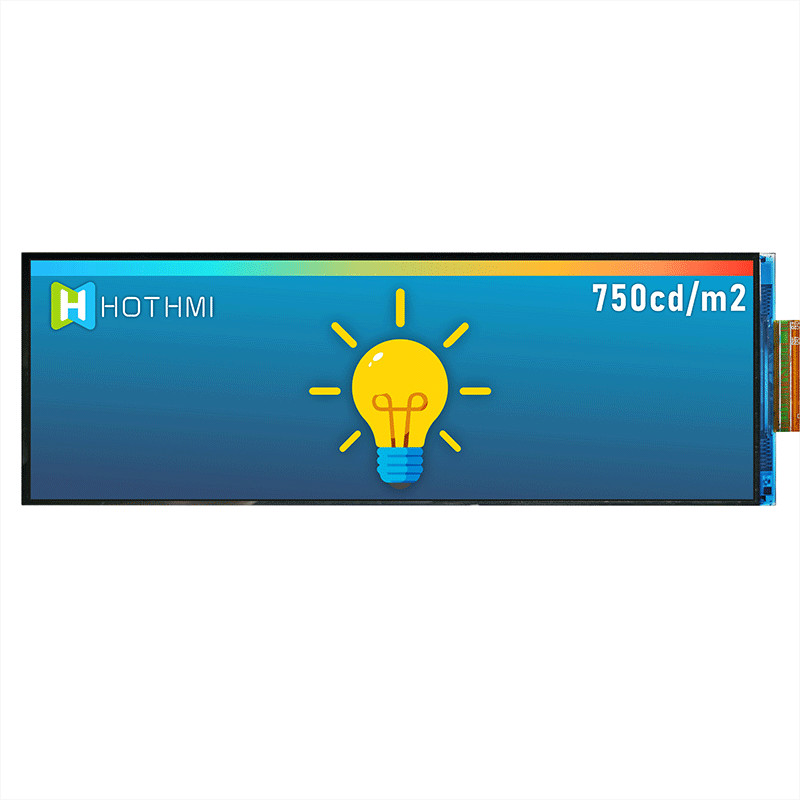

Backlight type or brightness - 700cd/m2
Connection method PIN number - 40PIN

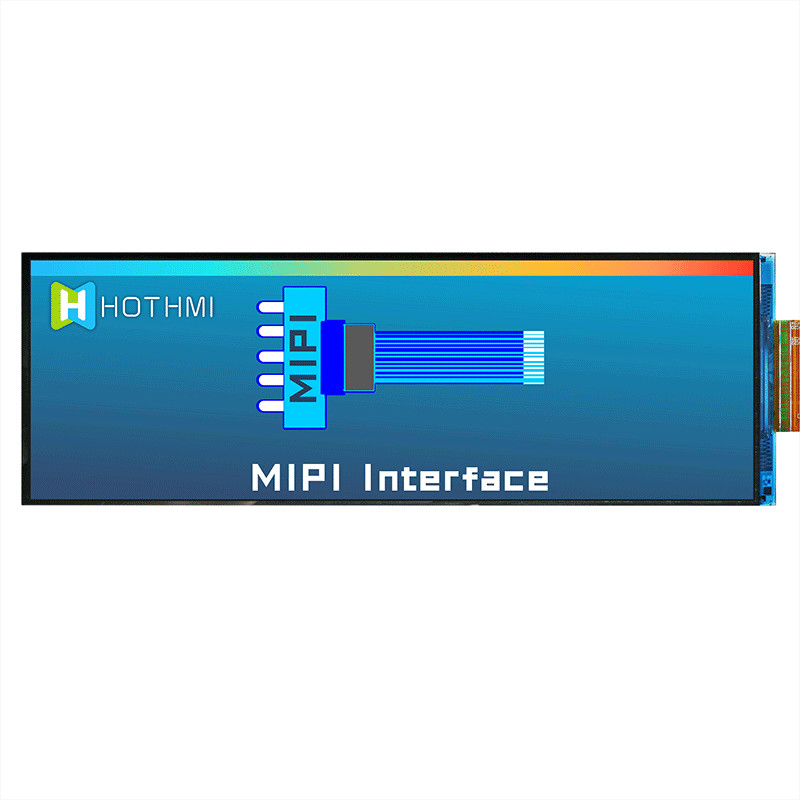

Interface - MIPI

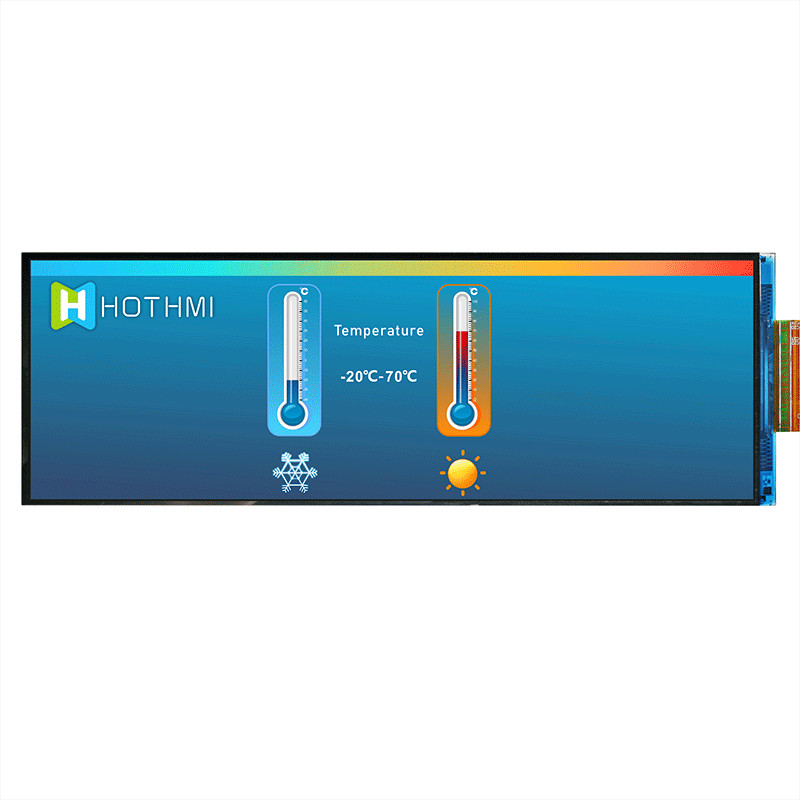

Operating temperature - (-20~70℃)
Supply Voltage - 3.3V

General Feature

Item	Standard Value	Unit
Display Size	7.8”	-
Number of Pixels	400(H)x3(RGB)*1280(V)	-
Active Area	59.40(H) * 190.08(V)	mm
Outline Dimension	65.20(H) * 201.18(V) * 3.30(D) <TFT>	mm
Viewing Direction	Full O’Clock	-
Interface	MIPI 4L	-
Driver IC	ST7703	-
Driver Condition	VCI=2.8V,IOVCC=1.8V	V
Backlight	LED White LED	-
Touch Panel	Whitout Touch Panel	-
CTP Driver IC	- - -	-
CTP Driver Condition	- - -	V
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃

TFT Pin Description

Pin NO.	Symbol	Description
1	GND	Ground
2	D0P	High speed interface data differential signal input/output pins
3	D0N
4	GND	Ground
5	D1P	High speed interface data differential signal input pins
6	D1N	High speed interface data differential signal input pins
7	GND	Ground
8	DCKP	High speed interface clock differential signal input pins
9	DCKN	High speed interface clock differential signal input pins
10	GND	Ground
11	D2P	High speed interface data differential signal input pins
12	D2N	High speed interface data differential signal input pins
13	GND	Ground
14	D3P	High speed interface data differential signal input pins
15	D3N	High speed interface data differential signal input pins
16	GND	Ground
17,18	IOVCC	I/O Power
20 - 23	NC	Open Pin
24	RESX	Global reset pin. Active low to enter reset state.
25,26	NC	Open Pin
27	GND	Ground
28,29	LEDK	Backlight cathode
30	GND	Ground
31	NC	Open Pin
32,33	GND	Ground
34	NC	Open Pin
35,36	LEDA	Backlight anode
37	GND	Ground
38,39	VCI	Analog Power(2.6 ~ 3.3 V,2.8V Type)
40	NC	Open Pin

Product Description

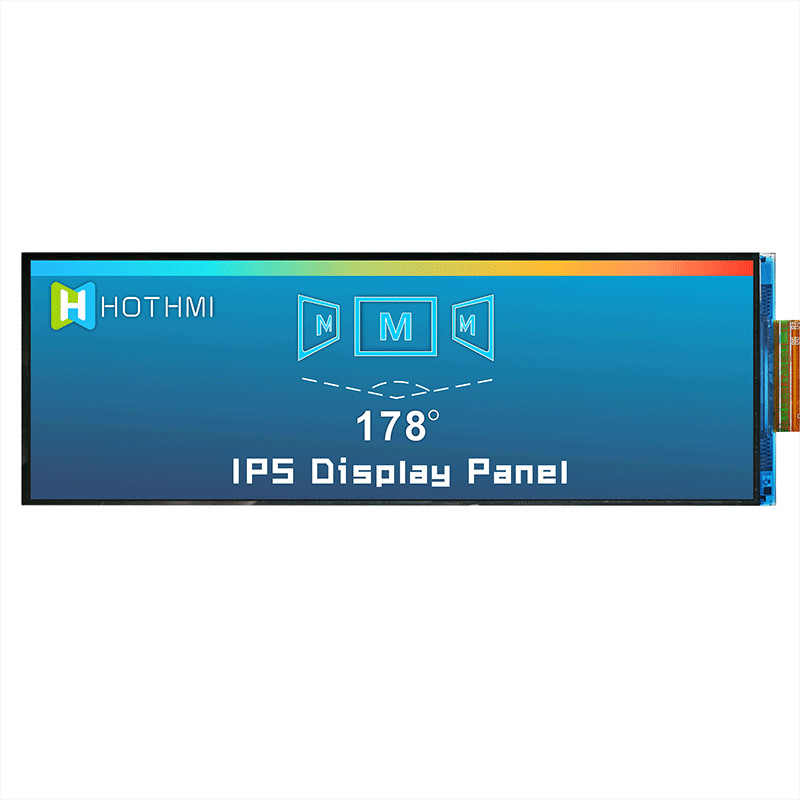

TFT-H078A1ZAISTN40 is a 7.84-inch TFT LCD module with IPS panel technology. This TFT-LCD has a resolution of 400 x 1280 pixels. The TFT-H078A1ZAISTN40 module has built-in ST7703 driver IC, supports MIPI interface, the contrast ratio is 700 (typical value), and the module brightness is 700 nits (typical value). H078A1 adopts IPS panel technology, the viewing angle is wider than TN glass, the left: 80 / right: 80 / top: 80 / bottom: 80 degrees, the color is vivid, and the high-quality picture is saturated and natural. The driving voltage of the H078A1 module is 3.3V, normal black/transmissive LCD, matte glass, and the screen aspect ratio is 16:9. The operating temperature of this module is -20°C to +70°C, and the storage temperature is -30°C to +80°C. If the customer's product application needs to use high-brightness TFT, the TFT-H078A1ZAISTN40 module can be selected, and its module brightness is 700 nits (typ.).

Search keyword: tft 7.8, tft 7.8", 7.8 tft lcd, 7.8" tft lcd, 7.8 inch tft lcd, tft lcd 7.8, 7.8 tft display, 7.8" tft display, 7.8 inch tft display, tft display 7.8, tft display 7.8"

7.8 Inch 400x1280 Bar Type TFT , ST7703 High Brightness LCD Display

TFT-H078A1ZAIST7N40.pdf
