Name: 12864 Mono Graphic FSTN LCD Display Module for Meters
Brand: HOTHMI
Price: 1 USD

Brand Name : HOTHMI

Model Number : HTG12864I

Certification : GSG, FCC

Place of Origin : China

MOQ : 1

Delivery Time : 5-7

Packaging Details : Vacuum packing

Contact Now

Product type:COG

Dots :128*64

Outline size(mm) :69.1*50.0*2.8

Size of View Window(mm):65.5*38.0

Display size(mm) :60.775*32.935

Point spacing(mm):0.475*0.515

Visual angle:6H

Backlight type or brightness:WHITE

Connection PIN Number:FPC-36PIN

Interface mode:MCU/8bit

Working temperature:-20-70℃

Power supply voltage:3.3v

Driver chip model:ST7565R

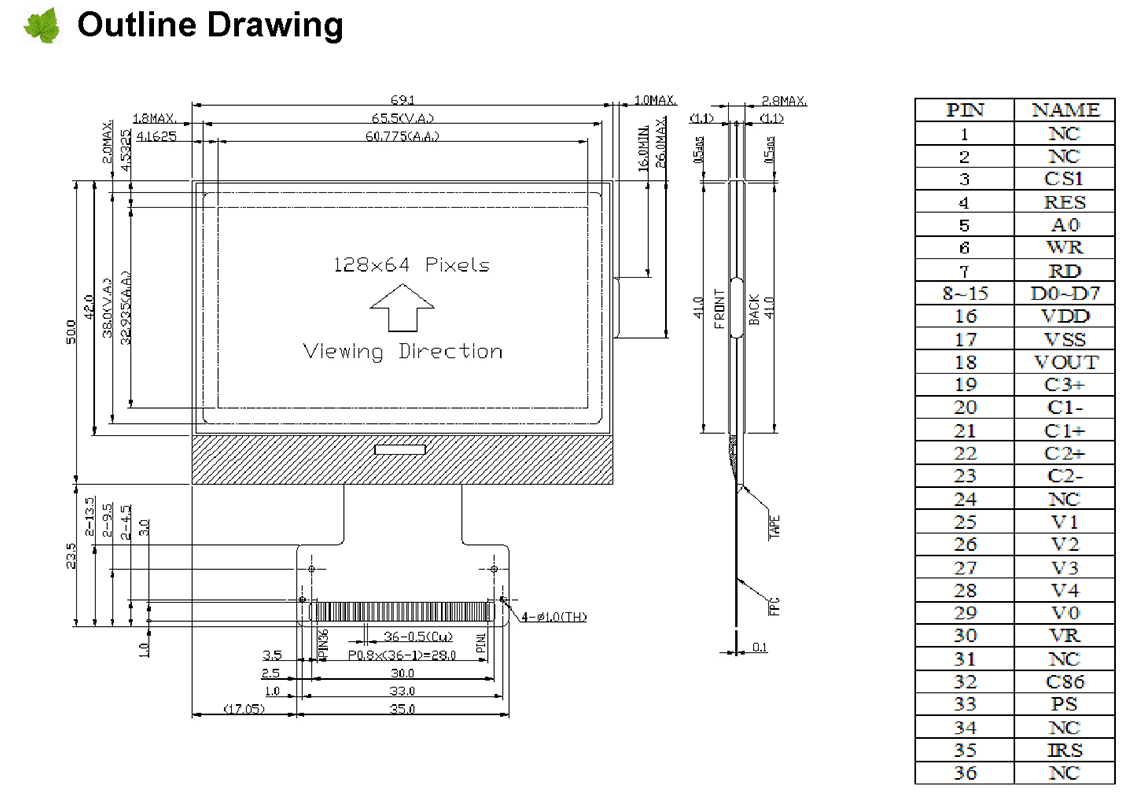

CAD Drawings:

12864 Mono Graphic FSTN LCD Display Module for Meters

12864 Graphic LCD Module

12864 Mono Graphic FSTN LCD Display Module for Meters

2.8inch 12864 mono lcd module

12864 Mono Graphic FSTN LCD Display Module for Meters

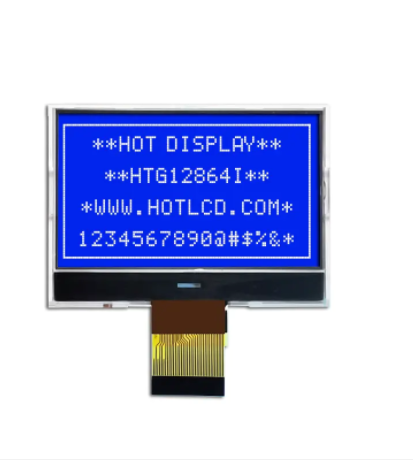

12864 Mono Graphic FSTN LCD Display Module for Meters 12864 -Blue lcd module 12864 lcd module -yellow

12864 Mono Graphic FSTN LCD Display Module for Meters Images
